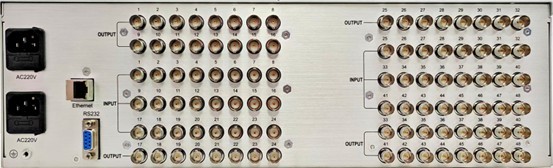

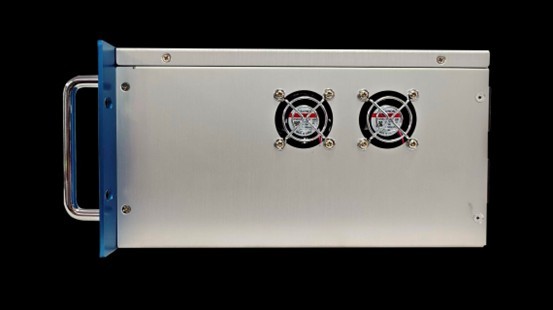

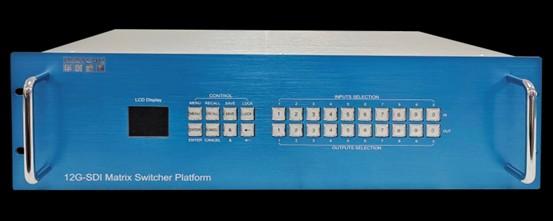

48x48 12G-SDI Matrix Switcher

1. Product Introduction

This matrix switcher stands out for its ability to handle high-end video specifications. It supports large-format resolutions, high frame rates (HFR), and deep-color formats, which are important for delivering immersive visual experiences. It effectively reduces the number of cables required when transmitting 4K/UltraHD content via SDI, streamlining the installation and setup process. It is widely used in many fields, such as Radio and TV broadcasting, live streaming events, large-scale concerts, sports competitions, multimedia education, and other event-based scenarios.

2. Features

1. Support 48-ch 12G-SDI input and 48-ch 12G-SDI output; Each channel supports a resolution of up to 3840X2160@60Hz;

2. Can achieve a maximum resolution of 4K@60Hz in 4:4:4 chroma subsampling, display sharp, detailed, and color-accurate images;

3. Adapt to different SDI standards automatically, from 270Mbps to 12Gbps, seamlessly integrate with exist video equipment;

4. Support one-to-one, one-to-many, andmany-to-many configurations;

5. Equipped with user-friendly buttons and LCD interface;

6. Have advanced high-performance image processing technology, ensuresvideo signals remain distortion-free during long-distance transmission;

7. Compatible with a wide range of professional cameras, PCs, and other video-enabled devices;

8. Support plug-and-play;

9. Support control via RS232 and RJ45 interfaces. The RJ45 portcan open the API protocol, can connect to other control boards.

10. Offers customization services; 8x8,16x16,32x32,72x72,128x128 optional.

3. Technical Parameters
