M12-A-17 Shielded PVC Cable Female Right-Angle Connector
A-Code, 17-core, right-angle type, shielded PVC, socket type, single-ended cable, 17×26AWG, cable length: 1000mm
Category: M12 Connector
Product description
| Parameter | |

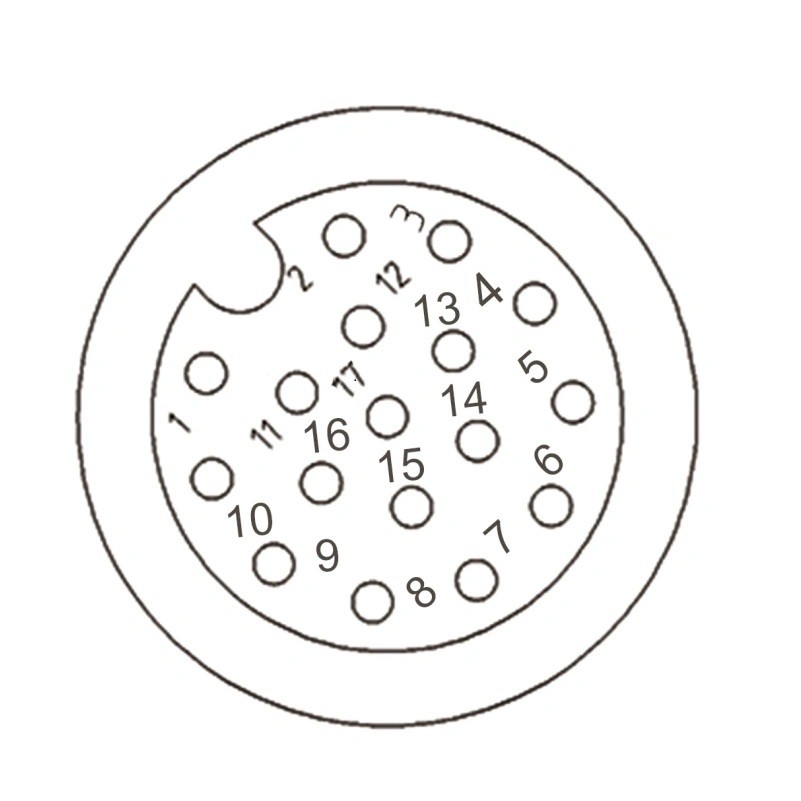

| Pin/Hole Count | 17 |
| Wiring Length | 1000mm |
| Connector Gender | Female |
| Cable Type | PVC |
| Rated Current | 1.5A |
| Wire Gauge (Cross-sectional Area) | 26AWG (0.14mm²) |
| Rated Voltage | 30V |
| Code | A |
| Straight/Right Angle | Right Angle |

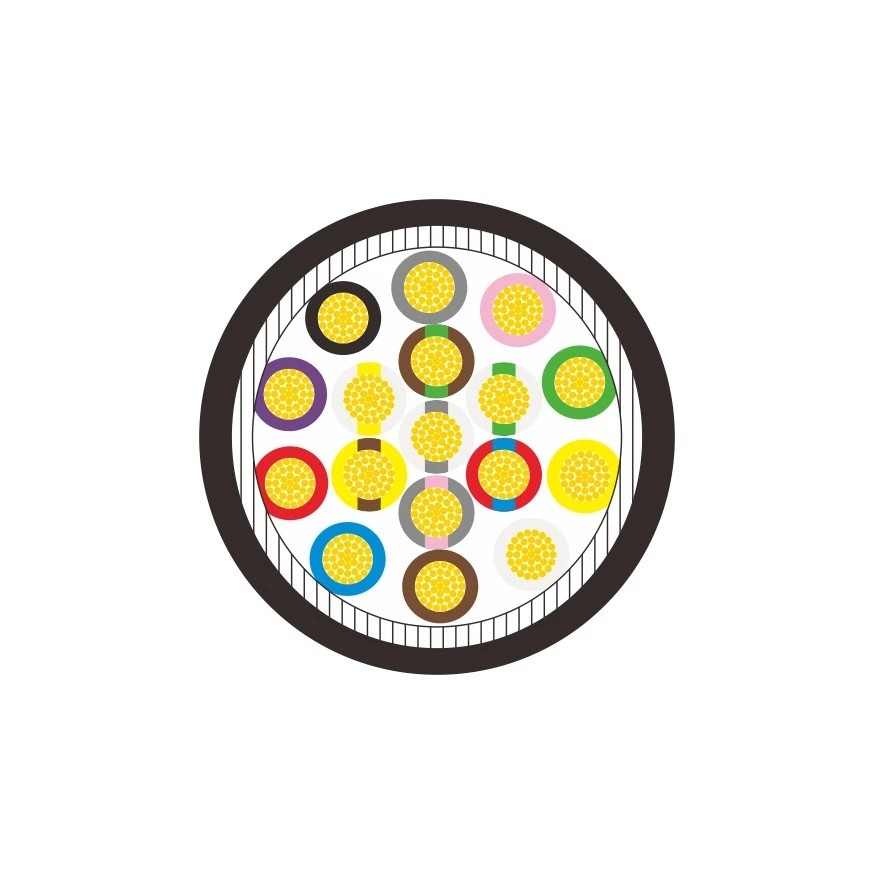

| Shielding Structure | 360° Full Shielding |
| Protection Class | IP67 |
| Cable Jacket Color | Black |
| Terminal Connection Method | Soldering |
| Operating Temperature Range | -25°C ~ +80°C |
| Pin Terminal Material | Phosphor Bronze Socket |
| Flame Retardant Rating | UL94 V0 |
| Pin/Terminal Plating | Gold-plated, 3μ" |
| Cable Characteristics | UV-resistant, Hydrolysis-resistant, Oil-resistant, etc. |
| Insulator Material | PA66 |
| Sealing Method | O-ring Seal (Waterproof after Male-Female Mating) |
| Contact Resistance | ≤5mΩ |
| Insulation Resistance | ≥100 MΩ |
| Pollution Degree | Class III |
| Mating Cycles | 500 Times |
| Waterproof Depth | IP67, 1m Water Depth for 30 Minutes |
| Product Certifications | RoHS, REACH, CE |
| Quality Assurance | 1-Year Warranty |
| Industry Standard | IEC 61076-2-101 |
