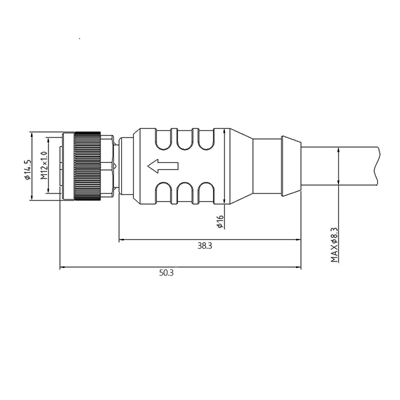

M12 A-coded 8-pin Molded Female Straight Connector with 8×24AWG Unshielded Cable
The M12 metric-threaded A-coded connector is the most commonly used connector in the current factory automation field. Designed in compliance with the standard IEC 61076-2-101, it is primarily developed for sensors and actuators in factory automation applications.
Category: M12 Connector
Product description
| Parameter | Specification |

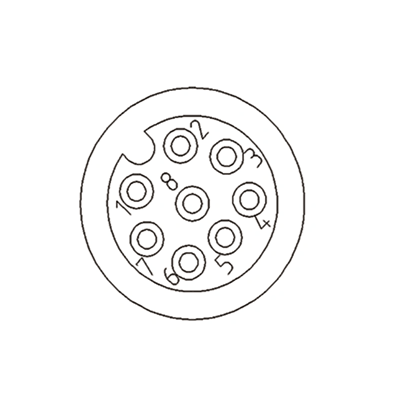

| Pin/Hole Count | 8 |
| Cable Length | Customer-customized length |
| Connector Gender | Female |
| Cable Jacket Material | PVC, PUR, Halogen-free, TPE & customer-specified materials |
| Rated Current | 2A |
| Wire Gauge (Cross-sectional Area) | 24AWG (0.25mm²) |
| Rated Voltage | 30V |
| Core Insulation | PVC |
| Keying Configuration | A-coding |
| Shielding Structure | Unshielded |
| Connector Type | Straight (vs Right-angle) |
| Cable Jacket Color | Black, Orange, Red, White, Yellow, Gray, etc. |
| Terminal Connection Method | Soldering |
| Operating Temperature Range | -25°C ~ +80°C |
| Pin Terminal Material | Phosphor Bronze Socket |
| Cable Flammability Rating | UL94 V0 |
| Pin/Terminal Plating | Gold-plated (3μ") |
| Cable Performance Features | UV-resistant, Hydrolysis-resistant, Oil-resistant, etc. |
| Connector Insert Material | PA66 |
| Sealing Method | O-ring seal (waterproof after male-female mating) |
| Overmold Material | PVC |
| Locking Screws/Nuts | Nickel-plated Copper |
| Contact Resistance | ≤5mΩ |
| Panel Cutout Size | N/A |
| Insulation Resistance | ≥100 MΩ |
| Ingress Protection (IP) Rating | IP67 |
| Pollution Degree | Class III |
| Connector Flammability Rating | UL94 V0 |
| Waterproof Depth | IP67, 1m water depth for 30 minutes |
| Mating Cycle Life | 500 times |
| Quality Assurance | 1-year warranty |
| Environmental Compliance | RoHS Compliant, REACH Compliant, CE Compliant |
| Industry Standard | IEC 61076-2-101 |
| Product Certifications | RoHS |
