M12 A-coded 8-pin Molded Female Right-angle Connector with 8×24AWG Unshielded Cable
The M12 metric-threaded A-coded connector is the most commonly used connector in the current factory automation field. Designed in compliance with the standard IEC 61076-2-101, it is primarily developed for sensors and actuators in factory automation applications.
Category: M12 Connector
Product description

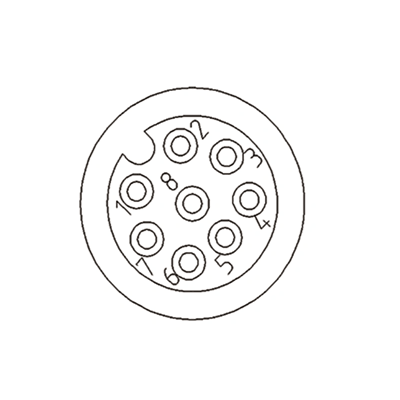

| Pin/Hole Count | 8 |
Cable Length | Customer-customized length |
| Connector Gender | Female |
Cable Jacket Material | PVC, PUR, Halogen-free, TPE & customer-specified materials |
| Rated Current | 2A |

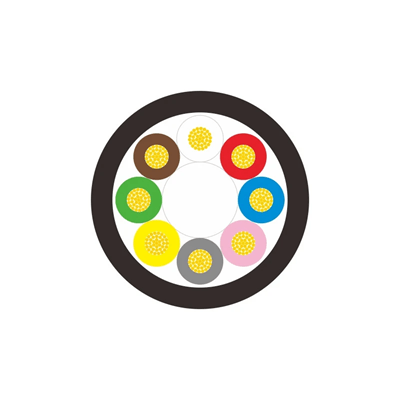

Wire Gauge (Cross-sectional Area) | 24AWG (0.25mm²) |
| Rated Voltage | 30V |
Core Insulation | PVC |
| Keying Configuration | A-coding |
Shielding Structure | Unshielded |

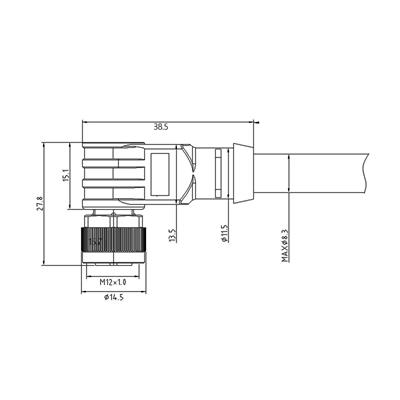

| Connector Type | Right-angle (vs Straight) |
Cable Jacket Color | Black, Orange, Red, White, Yellow, Gray, etc. |
| Terminal Connection Method | Soldering |
Operating Temperature Range | -25°C ~ +80°C |
| Pin Terminal Material | Phosphor Bronze Socket |
Cable Flammability Rating | UL94 V0 |
| Pin/Terminal Plating | Gold-plated (3μ") |
Cable Performance Features | UV-resistant, Hydrolysis-resistant, Oil-resistant, etc. |
| Connector Insert Material | PA66 |
Sealing Method | O-ring seal (waterproof after male-female mating) |
| Overmold Material | PVC |
Locking Screws/Nuts | Nickel-plated Copper or Plastic Nuts |
| Contact Resistance | ≤5mΩ |
Panel Cutout Size | N/A |
| Insulation Resistance | ≥100 MΩ |
Ingress Protection (IP) Rating | IP67 |
| Pollution Degree | Class III |
Connector Flammability Rating | UL94 V0 |
| Waterproof Depth | IP67, 1m water depth for 30 minutes |
Mating Cycle Life | 500 times |
| Quality Assurance | 1-year warranty |
Environmental Compliance | RoHS Compliant, REACH Compliant, CE Compliant |
| Industry Standard | IEC 61076-2-101 |
Product Certifications | RoHS, REACH, CE |
