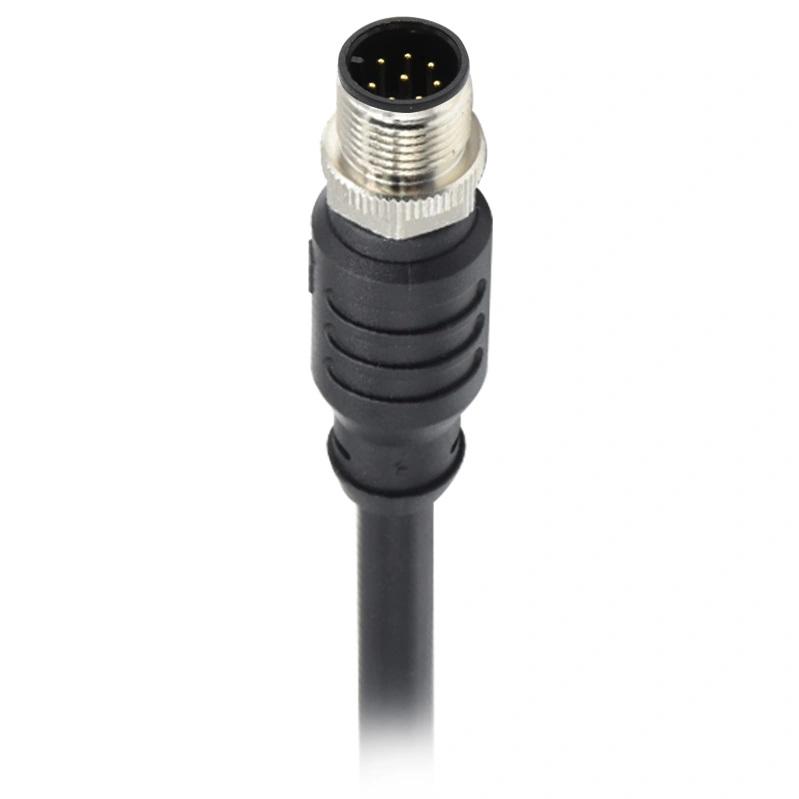

M12-A-8 Shielded Cable Male Connector Cable
The M12 metric-threaded Code A connector is the most widely used connector in the current factory automation sector. Designed in compliance with the standard IEC 61076-2-101, it is developed specifically for sensors and actuators in factory automation applications.
Category: M12 Connector
Product description
| Parameter | |
| Pin/Hole Count | 8 |
| Wiring Length | Customer Customized Length |
| Connector Gender | Male |
| Cable Jacket | PVC, PUR, Halogen-free, TPE & Customer-specified Materials |
| Rated Current | 2A |
| Wire Gauge (Cross-sectional Area) | 24AWG (0.25mm²) |
| Rated Voltage | 30V |
| Core Wire Insulation | PVC |
| Error-proof Keying | Code A |
| Shielding Structure | 360° Full Shielding |
| Straight/Right Angle | Straight |
| Cable Jacket Color | Black, Orange, Red, White, Yellow, Grey, etc. |
| Terminal Connection Method | Soldering |
| Operating Temperature Range | -25°C ~ +80°C |
| Pin Terminal Material | Brass Pin, Machined Solid Component |
| Cable Flame Retardant Rating | UL94 V0 |
| Pin/Terminal Plating | Gold-plated, 3μ" |
| Cable Characteristics | UV-resistant, Hydrolysis-resistant, Oil-resistant, etc. |
| Connector Insulator | PA66 |
| Sealing Method | O-ring Seal (Waterproof after Male-Female Mating) |
| Outer Molding Material | PVC |
| Locking Screws/Nuts | Nickel-plated Copper or Plastic Nuts |
| Contact Resistance | ≤5mΩ |
| Panel Cutout Size | N/A |
| Insulation Resistance | ≥100 MΩ |
| Protection Class | IP67 |
| Pollution Degree | Class III |
| Connector Flame Retardant Rating | UL94 V0 |
| Waterproof Depth | IP67, 1m Water Depth for 30 Minutes |
| Mating Cycles | 500 Times |
| Quality Assurance | 1-Year Warranty |
| Environmental Compliance | RoHS Compliant, REACH Compliant, CE Compliant |
| Industry Standard | IEC 61076-2-101 |
| Product Certification | RoHS |
